Keywords

Asprotect, RSA, EncryptionConst, MD5, RC4

1 Abstract

Asprotect SKE provides function CheckKeyAndDecrypt. It verifies the registration key for all implemented modes and saves it to the external configuration file. If registration key is valid in a valid mode, Asprotect SKE will unlock encrypted sections which protected by Macro REG_CRYPT_BEGIN and REG_CRYPT_END pairs. This tutorial is divided into two parts. One is key replace and the other is attack on activation key.

Tools:
ollydbg 1.1, UltraEdit

2 Key Replace

Asprotect SKE uses RSA public key cryptosystem in the key activation. Only author who has the private key can generate registration keys. For example, when we try to register Asprotect 2.3 SKE build 03.19 Beta, our registration keys are generated by RSA Private Key which only author has. The Asprotect application use RSA Public Key to verify the registration key. It's hard to forge a valid registration key because we don't have its Private Key.
If we have a valid registration key, that will results the correct output from Public Key. With that correct output we create our own RSA Keys, replace original Public Key with our own Public Key in Asprotect application. Then we can use our own private key to generate the 'valid registration key', which will work perfectly because the Asprotect application will calculate the same output from the keys.
Now, our target is Asprotect 2.3 SKE build 03.19 Beta. Assume we have got a valid registration key(of course it is invalid),let's go ^_^

Name: shoooo
Key: HGV8K-TVKCW-28L5K-2TZMT-LZNT3-GPJDM-NQG3D-N7QMT-VXVEE-FHK7K

2.1 Get the EncryptionConst

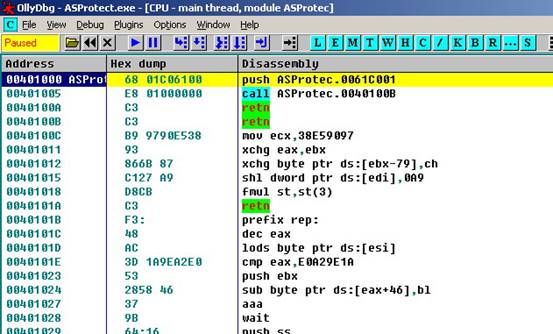

Launch ollydbg start here.

Ignore all exceptions and don't forget to turn on IsDebuggerPresent plugin. It is an unregistered mode so we press SHIFT+F9 to run.

Find the Asprotect dll ImageBase, Mine is 1090000h. Set breakpoint on RVA 1B320h of the dll ImageBase. This call is the validation of registration key.

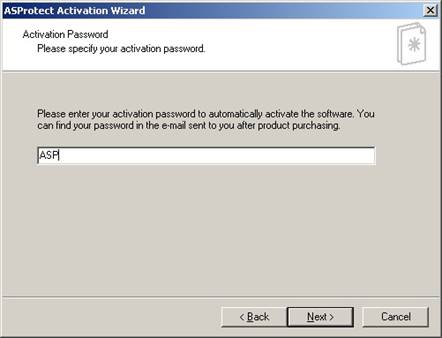

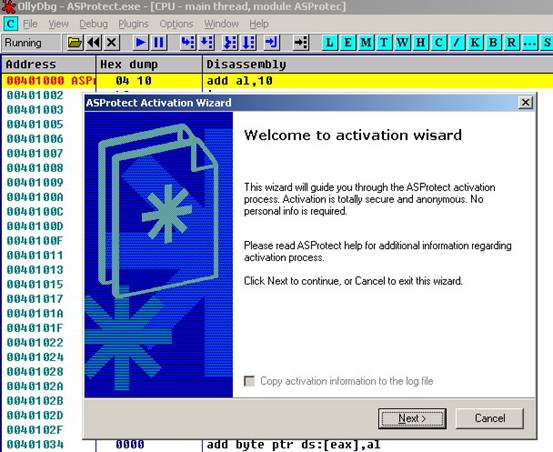

Press 'Next' at activation wizard, select 'Offline Activation', press 'Next' again, input 'ASP' and press 'Next'.

Input name and registration key then Press 'Next'.
Name: shoooo
Key: HGV8K-TVKCW-28L5K-2TZMT-LZNT3-GPJDM-NQG3D-N7QMT-VXVEE-FHK7K

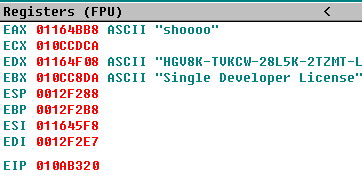

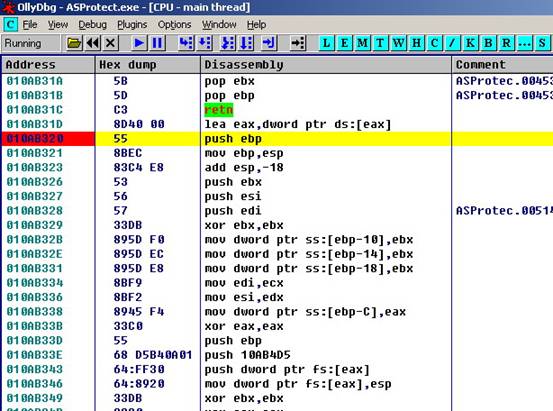

It will break on 10AB320h. Yes, it starts to verify the registration key. Please watch the Registers Window :

EAX points to the Name
EDX points to the registration key
EBX points to the current mode name
ECX points to a structure about registration, we names it structure T

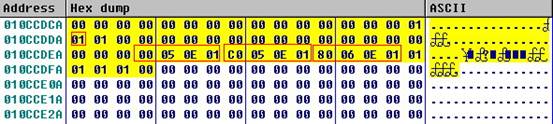

We follow in dump ECX, watch the structure T in Data Window

I use 4 markers in red. The first one 01 indicates current registration key is HardwareLocking, we should modify it to 00. HardwareLocking doesn't participate in registration key computation. I will mention it later.
010E0500h point to RSA Public Key P5
010E05C0h point to RSA Public Key P6
010E0680h point to RSA Public Key P7
I will mention P5, P6 and P7 later too.
Asprotect 2.3 SKE build 03.19 Beta has two registration modes. Mode 1 names 'Single Developer License' while mode 2 names 'Company Developer License'. So it will call 010AB320h twice. Either Mode 1 or Mode 2 has been verified to be successful, application will be activated.

010AB320 push ebp
010AB321 mov ebp,esp
010AB323 add esp,-18
010AB326 push ebx
010AB327 push esi
010AB328 push edi
010AB329 xor ebx,ebx
010AB32B mov dword ptr ss:[ebp-10],ebx
010AB32E mov dword ptr ss:[ebp-14],ebx
010AB331 mov dword ptr ss:[ebp-18],ebx
010AB334 mov edi,ecx
010AB336 mov esi,edx
010AB338 mov dword ptr ss:[ebp-C],eax
010AB33B xor eax,eax
010AB33D push ebp
010AB33E push 10AB4D5
010AB343 push dword ptr fs:[eax]
010AB346 mov dword ptr fs:[eax],esp
010AB349 xor ebx,ebx
010AB34B xor eax,eax
010AB34D push ebp
010AB34E push 10AB4AE
010AB353 push dword ptr fs:[eax]
010AB356 mov dword ptr fs:[eax],esp
010AB359 lea edx,dword ptr ss:[ebp-10]
010AB35C mov eax,esi
010AB35E call 010AB0D4

010AB35Eh call 010AB0D4h to transform the registration key to Hex value. This transform happens after looking up the table and combination of 5 bits.


Key: HGV8K-TVKCW-28L5K-2TZMT-LZNT3-GPJDM-NQG3D-N7QMT-VXVEE-FHK7K
After transform
Hex: E6 9F 93 19 A4 54 C7 95 B4 E2 37 5C 55 76 47 26 6A 06 B6 38 D9 1B 3A E5 C6 75 99 08 53 A7 A9

010AB363 test al,al
010AB365 jnz short 010AB374
010AB367 xor eax,eax
010AB369 pop edx
010AB36A pop ecx
010AB36B pop ecx
010AB36C mov dword ptr fs:[eax],edx
010AB36F jmp 010AB4BA
010AB374 mov eax,edi
010AB376 call 010AB29C
010AB37B mov esi,eax
010AB37D mov eax,dword ptr ss:[ebp-10]
010AB380 call 01093954
010AB385 mov ebx,eax
010AB387 sub ebx,esi
010AB389 lea eax,dword ptr ss:[ebp-14]
010AB38C push eax
010AB38D mov ecx,esi
010AB38F mov edx,1
010AB394 mov eax,dword ptr ss:[ebp-10]
010AB397 call 01093B5C
010AB39C lea eax,dword ptr ss:[ebp-18]
010AB39F mov ecx,dword ptr ss:[ebp-C]
010AB3A2 mov edx,dword ptr ss:[ebp-14]
010AB3A5 call 010939A0
010AB3AA lea eax,dword ptr ss:[ebp-10]
010AB3AD call 01093B24
010AB3B2 add eax,esi
010AB3B4 push eax
010AB3B5 push ebx
010AB3B6 mov eax,dword ptr ss:[ebp-18]
010AB3B9 call 01093954
010AB3BE push eax
010AB3BF lea eax,dword ptr ss:[ebp-18]
010AB3C2 call 01093B24
010AB3C7 mov edx,eax
010AB3C9 lea eax,dword ptr ds:[edi+23]
010AB3CC pop ecx
010AB3CD call 010AABA8

Here Hex registration key is divided into two parts.

First 7 bytes: E6 9F 93 19 A4 54 C7
Rest 24 bytes: 95 B4 E2 37 5C 55 76 47 26 6A 06 B6 38 D9 1B 3A E5 C6 75 99 08 53 A7 A9

010AB3CDh call 010AABA8h to check the Rest 24 bytes with Public Key P5, P6 and P7. If verified right, it will return 1. The output of call 010AABA8h is only used as parallel. So the Rest 24 bytes of Hex are useless data.

010AB3D2 mov ebx,eax
010AB3D4 test bl,bl
010AB3D6 je 010AB4A4
010AB3DC mov eax,dword ptr ss:[ebp-C]
010AB3DF call 01093954
010AB3E4 push eax
010AB3E5 lea eax,dword ptr ss:[ebp-14]
010AB3E8 call 01093B24
010AB3ED push eax
010AB3EE mov eax,dword ptr ss:[ebp-C]
010AB3F1 call 01093B18
010AB3F6 mov ecx,eax
010AB3F8 mov edx,esi
010AB3FA pop eax
010AB3FB call 0109BE0C

010AB3FBh call 0109BE0Ch to decrypt the First 7 bytes of Hex Key. The decryption algorithm is RC4. The RC4 init key is just the name: 'shoooo'. Only name and the First 7 bytes of Hex are useful.

010AB400 lea eax,dword ptr ss:[ebp-14]
010AB403 call 01093B24
010AB408 mov dword ptr ss:[ebp-4],eax
010AB40B mov byte ptr ss:[ebp-5],1
010AB40F push ebp
010AB410 mov eax,4
010AB415 call 010AB2DC
010AB41A pop ecx
010AB41B mov byte ptr ds:[edi+1],al

Here al represents current ModeID, it comes from the decrypted First 7 bytes of Hex. If you want to register successfully in 'Single Developer License', it must be equal to 1. Because Mode 1 names 'Single Developer License'.

010AB41E push ebp
010AB41F mov eax,4
010AB424 call 010AB2DC
010AB429 pop ecx
010AB42A mov byte ptr ds:[edi],al
010AB42C push ebp
010AB42D mov eax,0C
010AB432 call 010AB2DC
010AB437 pop ecx
010AB438 mov word ptr ds:[edi+2],ax
010AB43C cmp byte ptr ds:[edi+E],0
010AB440 jnz short 010AB448
010AB442 cmp byte ptr ds:[edi+11],0
010AB446 jnz short 010AB45A
010AB448 push ebp
010AB449 mov eax,0C
010AB44E call 010AB2DC
010AB453 pop ecx
010AB454 mov word ptr ds:[edi+4],ax
010AB458 jmp short 010AB460
010AB45A mov word ptr ds:[edi+4],0
010AB460 cmp byte ptr ds:[edi+F],0
010AB464 jnz short 010AB46C
010AB466 cmp byte ptr ds:[edi+11],0
010AB46A jnz short 010AB47D
010AB46C push ebp
010AB46D mov eax,20
010AB472 call 010AB2DC

010AB472h call 010AB2DCh to get a DWORD. This significant DWORD is also from the decrypted First 7 bytes of Hex. If this data decrypted properly, application will unlock encrypted sections. That means whether application is activated or not depends on this DWORD. We call this significant data 'EncryptionConst '.

010AB4BE pop ecx
010AB4BF mov dword ptr fs:[eax],edx
010AB4C2 push 10AB4DC
010AB4C7 lea eax,dword ptr ss:[ebp-18]
010AB4CA mov edx,3
010AB4CF call 0109371C
010AB4D4 retn
010AB4D5 jmp 0109311C
010AB4DA jmp short 010AB4C7
010AB4DC mov eax,ebx
010AB4DE pop edi
010AB4DF pop esi
010AB4E0 pop ebx
010AB4E1 mov esp,ebp
010AB4E3 pop ebp
010AB4E4 retn

010AB4E4h end this call. If verified right, it will return 1. We watch structure T again in Data Window.

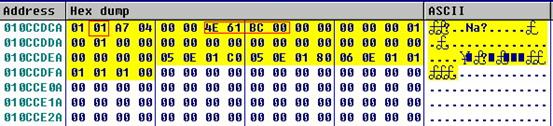

I use 2 markers in red. The first one 01 indicates current Mode ID = 01;
00BC614Eh: 'EncryptionConst' for unlock encrypted sections.

Here we assume that the 'EncryptionConst' 00BC614Eh is correct. What we should do next is to create a project, make a RSA key pair, and then patch Public Key into Asprotect 2.3 SKE build 03.19 Beta.


2.2 Create a new project

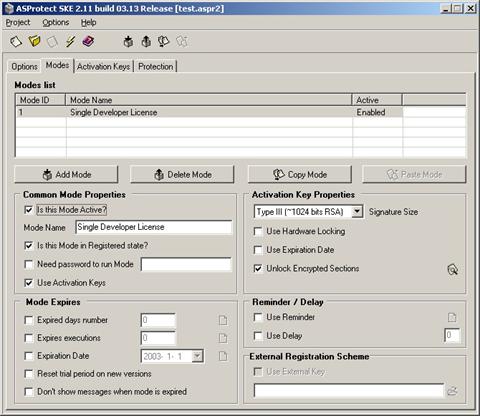

Launch Asprotect SKE(such as Asprotect SKE 2.11 build 03.13 Release). Project-> New project-> set as the following figure -> Save project to file 'test.aspr2'.

Open 'test.aspr2' with UltraEdit. We are concerned about the following issues.

[Activation Keys 1]
p1=E3F23E039A49EF1B3A3F6ED2B1008BC5
p3=F9909CC20901EEE1F11951AB62512123
p5=E013BB36B2659FC3EE22DBDD30F4E838AF1EE6910E35F7E880C72AF02E1339604D5F8C30394A8D734ED6D29EE94FAF03E0C90D2FE8C54437DEAAAF1D77954DC5F312BEC881AF845686858756795EC1F233FD1EEF2DA2E0EB68B579A2109C1C3A5FA3F609F1FC7FBE8C0F008DF32C604711466AE11D02F43D47D68C6B2A70CC98
p6=10DF36C37A45990F17DE3C2BDDAF020A0140EA68AE0E570997A991F2B947F712599B6F1CA42315D94BFFC5E990B544FB898E9E9108E5A71869A2E145F32042EDA713383FAA51483038A535C05B441782C48CB44085E8130E9A3A74EA8516E7D93D00464A918B6B4E8FE1D301511CE19FA57D0E485D1ED3821D907A19AE8A3FE64
p7=12D9DA3EA116EDB35C5723EBF30A9932FC27EE3CF73C4905C2016FFFF3177F7E3C1A17C0E4DBEEE2E73CC260A495A00AAC9202213BB401D6A7540B095290429227F9BF41E57A889AB62FF81391651A99A29CA709DCF3ECC8A912B44D6C30DFF82EE385144C9E31F63ED0F5D0CE7F991109A840F2A18F1F50B53346C67FAAFB005
SignatureSize=192
ModeID=1
UseHardwareLocking=0
EncryptionConst=2383683100 // change it to 12345678 (00BC614Eh)

P1 can be regarded as our own RSA Private Key.
P3 can be regarded as our own RSA Private Key.
P5 can be regarded as our own RSA Public Key.
P6 can be regarded as our own RSA Public Key
P7 can be regarded as our own RSA Public Key


EncryptionConst is not 00BC614Eh, so we modify it to 12345678 (00BC614Eh) and update the 'test.aspr2' file.
We emphasize it again here. In Asprotect 2.3 SKE build 03.19 Beta application. We can only find its P5, P6 and P7. There are no P1, P3, and EncryptionConst. With a valid registration key, we could calculate the EncryptionConst and activate the application. But we are still short of P1, P3.
Now we have created our own RSA Key pairs and obtained the correct EncryptionConst, the only thing left is to replace application's Public Key with our own Public Key. Of course, we shouldn't publish our own Private Key P1 and P3.

2.3 Replace P5 P6 P7


P5, P6 and P7 are in the form of cipher in Asprotect application. To complete replacement, we must decrypt them, modify them, and encrypt them again.
Launch ollydbg again. Press CTRL+S to find sequence of commands in Asprotect dll section.

push ebp
mov ebp, esp
add esp, -200

mmm… if you don't know how to find Asprotect dll section. Follow this:
Break on the end of API GetModuleHandleA twice, F8 retn, break on the end of the aspack, F8 retn. Then you will see this

010CA14C push ebp
010CA14D mov ebp,esp
010CA14F add esp,-4C
010CA152 mov eax,10C9E7C
010CA157 call 01095D64
010CA15C call 010935C0

010CA14Ch is the EntryPoint of the Asprotect dll

We have found the sequence of commands.

0109BE0C push ebp
0109BE0D mov ebp,esp
0109BE0F add esp,-200
0109BE15 push ebx
0109BE16 push esi
0109BE17 mov esi,edx
0109BE19 mov ebx,eax
0109BE1B lea eax,dword ptr ss:[ebp-200]
0109BE21 mov edx,ecx
0109BE23 mov ecx,dword ptr ss:[ebp+8]
0109BE26 call 0109BE50
0109BE2B push esi
0109BE2C lea eax,dword ptr ss:[ebp-200]
0109BE32 mov ecx,ebx
0109BE34 mov edx,ebx
0109BE36 call 0109BEE8 //set breakpoint
0109BE3B lea eax,dword ptr ss:[ebp-200]
0109BE41 call 0109BED8
0109BE46 pop esi
0109BE47 pop ebx
0109BE48 mov esp,ebp
0109BE4A pop ebp
0109BE4B retn 4

Set breakpoint on 0109BE36h. Press F9 run. We break on 0109BE36h.
0109BE36h call 0109BEE8h to decrypt a block of data which include Public Keys.

EAX points to RC4 subkeys which are 100h length
EDX points to a block of encrypted data

Under the same RC4 subkeys, RC4 Encrypt is equivalent to Decrypt. So we must save 100h RC4 subkeys first. Follow in dump EAX, save 100h Hex to somewhere.

B2 20 D7 58 3E 3C 48 18 7F F6 89 CD E3 4E 9D D8
69 9B 05 1E E9 BD 2D 98 A1 AF EE DA 31 FF CF 0E
88 DE 67 1D 40 60 13 D0 A6 4A 6A 54 57 50 BE 9C
5E 72 83 6E CA 3A 4B 35 70 B4 2C B0 2B 7B AC 14
7C 64 7D 5B D3 66 B7 5C 7A C0 5F 0C 39 C5 0F 4F
E1 F2 D6 75 10 B6 29 F9 5D 92 FE CB 52 32 04 CC
74 D9 C9 0D 49 95 AE F0 91 36 09 76 8C B9 BC 0B
84 38 77 73 90 D2 BF E8 79 6B 8F BA 63 E2 6F 24
41 9F 94 47 A2 15 0A 6D AB A3 9A 82 E0 97 EF 8D
30 1A 59 12 03 65 F1 3B F4 B1 2F E6 A4 CE 11 B8
34 46 27 EC AA D1 28 42 33 22 96 DD 71 87 3F C1
A9 AD F7 1F 4C A7 80 23 7E 86 51 45 DF 44 08 56
3D 1B EB 00 4D 93 21 B5 99 F5 C3 85 DB 5A 16 E5
A8 E4 FC A5 C2 C4 53 2A 43 55 2E 25 1C 8E 61 FB
FA 01 6C 78 06 F8 81 B3 D5 BB FD 8B D4 F3 8A 68
C7 C8 26 DC 19 07 C6 EA 02 A0 9E E7 62 ED 17 37
100h RC4 subkeys

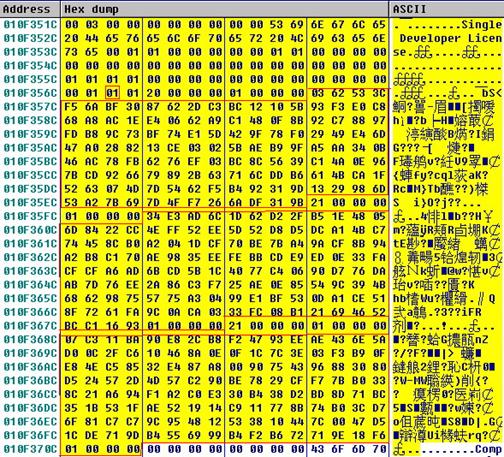

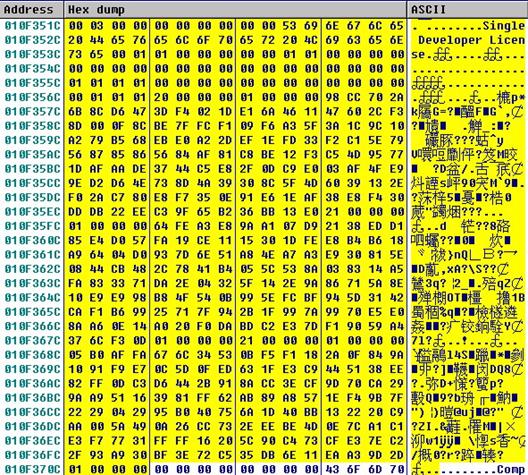

Follow in dump EDX and watch Data Window, F8 run to 0109BE3Bh.Locate original P5 P6 P7 from decrypted data.

I use 4 markers in red. The first one 01 indicates the current mode is HardwareLocking. The second one is original P5. The third one is original P6. The last one is original P7.
From the 'test.aspr2' file, we get our own P5, P6 and P7

p5=E013BB36B2659FC3EE22DBDD30F4E838AF1EE6910E35F7E880C72AF02E1339604D5F8C30394A8D734ED6D29EE94FAF03E0C90D2FE8C54437DEAAAF1D77954DC5F312BEC881AF845686858756795EC1F233FD1EEF2DA2E0EB68B579A2109C1C3A5FA3F609F1FC7FBE8C0F008DF32C604711466AE11D02F43D47D68C6B2A70CC98
p6=10DF36C37A45990F17DE3C2BDDAF020A0140EA68AE0E570997A991F2B947F712599B6F1CA42315D94BFFC5E990B544FB898E9E9108E5A71869A2E145F32042EDA713383FAA51483038A535C05B441782C48CB44085E8130E9A3A74EA8516E7D93D00464A918B6B4E8FE1D301511CE19FA57D0E485D1ED3821D907A19AE8A3FE64
p7=12D9DA3EA116EDB35C5723EBF30A9932FC27EE3CF73C4905C2016FFFF3177F7E3C1A17C0E4DBEEE2E73CC260A495A00AAC9202213BB401D6A7540B095290429227F9BF41E57A889AB62FF81391651A99A29CA709DCF3ECC8A912B44D6C30DFF82EE385144C9E31F63ED0F5D0CE7F991109A840F2A18F1F50B53346C67FAAFB005
Reverse each of them

p5=98CC702A6B8CD6473DF4021DE16A461147602CF38D000F8CBE7FFCF109F6A35F3A1C9C10A279B568EBE0A22DEF1EFD33F2C15E79568785865684AF81C8BE12F3C54D95771DAFAADE3744C5E82F0DC9E003AF4FE99ED2D64E738D4A39308C5F4D6039132EF02AC780E8F7350E91E61EAF38E8F430DDDB22EEC39F65B236BB13E0
p6=64FEA3E89AA107D92138EDD185E4D057FA19CE1115301DFEE8B4B618A96404D0937D6E51A84EA7A3E930815E0844CB482C7841B4055C538A038314A5FA833371DA2E04325F142E9A86715A8E10E9E998B84F540B995EFCBF945D3142CAF1B69925717F942B1F997A9970E5E08AA60E14A020F0DABDC2E37DF19059A4376CF30D01000000
p7=05B0AFFA676C34530BF5F1182A0F849A1091F9E70C5D0FED631FE3C9445138EE82FF0DC3D6442B918ACC3ECF9D70CA299AA951163981FF62AB89A8571EF49B7F2229042995B040756A1D40BB132220C9AA005A490A26CC732EEEBE4D0E7CA1C1E3F77731FFFF16205C90C473CFE37EC22F93A930BF3E72C535DB6E11EAA39D2D01000000
Paste them into memory

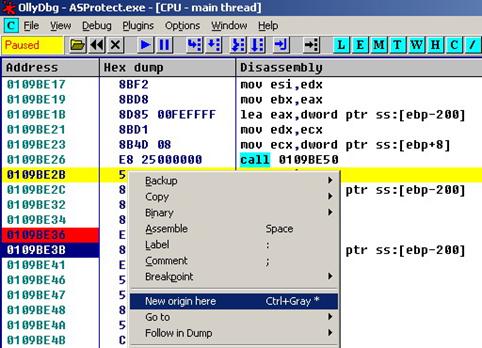

Set new origin on 0109BE2Bh.



Run to 109BE36h. We find that the RC4 subkeys which EAX points to have been changed. Load previous saved subkeys in memory. F8 to 0109BE3Bh. Complete encryption.
Thus, we have got the new encrypted data. We should cover them to old encrypted data in Asprotect.exe file. It's quite easy because we can easily locate them in Asprotect.exe file.

2.4 Patch CRC check.


After changing the Asprotect.exe file. The CRC check of encrypted data is also changed. Launch ollydbg with new modified Asprotect.exe. Let's patch it.
Press CTRL+S to find sequence of commands in Asprotect dll section


mov ebx, [eax]
mov eax, esi

We have found the sequence of commands

010C8786 mov ebx,dword ptr ds:[eax]
010C8788 mov eax,esi
010C878A call 010ABA88
010C878F add eax,dword ptr ds:[10D4188]
010C8795 call 010C859C
010C879A mov dword ptr ds:[10D4180],eax
010C879F xor ebx,dword ptr ds:[10D4184]
010C87A5 cmp ebx,dword ptr ds:[10D4180]
010C87AB je short 010C87B1

Set breakpoint on 010C879Fh, Press SHIFT+F9, we break on 010C879Fh.

EBX is a CRC Value which can be located in Asprotect.exe file.

The new CRC value is [10D4184h] XOR [10D4180h], replace old value with new value in Asprotect.exe file.

Now everything is OK! HOHO, we are able to make keygen for our 'new Asprotect application'.

3 Attack on Activation Key

If we don't have any valid registration key, what could we do? Well, perhaps factoring RSA N is terrible. It is correct EncryptionConst that activates the application. So we must understand clearly the role of EncryptionConst firstly.
Our idea is brute force attack on EncryptionConst.

3.1 Role of the EncryptionConst

We still debug Asprotect 2.3 SKE build 03.19 Beta. As mentioned above, 010AB320h call is the validation of registration key. If it is verified to be successful, we can set breakpoint and break on 010AB594h

010AB594 push ebx
010AB595 push esi
010AB596 push edi
010AB597 push ebp
010AB598 add esp,-14
010AB59B mov edi,ecx
010AB59D mov esi,edx
010AB59F mov dword ptr ss:[esp],eax
010AB5A2 mov bl,1
010AB5A4 push 4
010AB5A6 lea eax,dword ptr ss:[esp+4]
010AB5AA push eax
010AB5AB lea eax,dword ptr ss:[esp+C]
010AB5AF push eax
010AB5B0 call 010A3FE8

010AB5B0h call 010A3FE8h to get MD5 of EncryptionConst. Just like

MD5Init(&MD5_ctx);
MD5Update(&MD5_ctx, (char *)&EncryptionConst, 4);
MD5Final(outbuffer, &MD5_ctx);

010AB5B5 push esi
010AB5B6 push edi
010AB5B7 mov edi,esi
010AB5B9 lea esi,dword ptr ss:[esp+C]
010AB5BD mov ecx,4
010AB5C2 rep movsd
010AB5C4 pop edi
010AB5C5 pop esi
010AB5C6 mov ebp,7530
010AB5CB push 10
010AB5CD push esi
010AB5CE lea eax,dword ptr ss:[esp+C]
010AB5D2 push eax
010AB5D3 call 010A3FE8
010AB5D8 push esi
010AB5D9 push edi
010AB5DA mov edi,esi
010AB5DC lea esi,dword ptr ss:[esp+C]
010AB5E0 mov ecx,4
010AB5E5 rep movsd
010AB5E7 pop edi
010AB5E8 pop esi
010AB5E9 dec ebp
010AB5EA jnz short 010AB5CB
010AB5EC mov dword ptr ds:[edi],10
010AB5F2 mov eax,ebx
010AB5F4 add esp,14
010AB5F7 pop ebp
010AB5F8 pop edi
010AB5F9 pop esi
010AB5FA pop ebx
010AB5FB retn

Get the 30000 times MD5. Just like


for (int i=0; i<30000; i++)
{
MD5Init(&MD5_ctx);
MD5Update(&MD5_ctx, outbuffer, 16);
MD5Final(outbuffer, &MD5_ctx);
}

If EncryptionConst is correct, 010AB594h call get 30001 times MD5 of the EncryptionConst. We continue to set breakpoint and break on 010A49A7h. It starts to decode encrypted section finally.

010A49A2 mov eax,dword ptr ss:[ebp-4]
010A49A5 mov edx,dword ptr ds:[eax]
010A49A7 call dword ptr ds:[edx+8]

010A49A7h call [edx+8] to get MD5 again, so it's 30002 times MD5 of EncryptionConst.

010A49AA mov eax,dword ptr ss:[ebp-4]
010A49AD mov eax,dword ptr ds:[eax]
010A49AF call dword ptr ds:[eax+10]
010A49B2 push eax
010A49B3 mov eax,dword ptr ss:[ebp-4]
010A49B6 mov edx,dword ptr ds:[eax]
010A49B8 call dword ptr ds:[edx+C]
010A49BB mov ecx,eax
010A49BD mov edx,esi
010A49BF mov eax,ebx
010A49C1 call 0109BE0C

010A49C1h call 0109BE0Ch to RC4 decrypt a table which include encrypted section information.

EAX points to the encrypted table
ECX points to 16 bytes RC4 init key which is 30002 times MD5 of EncryptionConst.

Let's look at the encrypted table

11 80 DC 56 AE A7 30 1C F4 09 7E 90
95 82 DC 56 2A A5 30 1C 04 09 7E 90
A4 9F DC 56 25 B8 30 1C 4C 09 7E 90
96 5E DF 56 17 79 33 1C 79 09 7E 90
AE 6F DF 56 2F 48 33 1C 30 09 7E 90
CB 69 DF 56 40 4E 33 1C D7 09 7E 90
59 7C DF 56 D6 5B 33 1C A6 09 7E 90
9C 7F DF 56 1D 58 33 1C 2F 09 7E 90
18 1F DF 56 91 38 33 1C 77 08 7E 90
56 62 DE 56 D7 45 32 1C F2 09 7E 90
9F 33 12 00 A4 33 12 00 61 00 00 00
1B 31 12 00 20 31 12 00 91 00 00 00
2A 2C 12 00 2F 2C 12 00 D9 00 00 00
18 ED 11 00 1D ED 11 00 EC 00 00 00
20 DC 11 00 25 DC 11 00 A5 00 00 00
45 DA 11 00 4A DA 11 00 42 00 00 00
D7 CF 11 00 DC CF 11 00 33 00 00 00
12 CC 11 00 17 CC 11 00 BA 00 00 00
96 AC 11 00 9B AC 11 00 E2 01 00 00
D8 D1 10 00 DD D1 10 00 67 00 00 00

The rule is obvious!

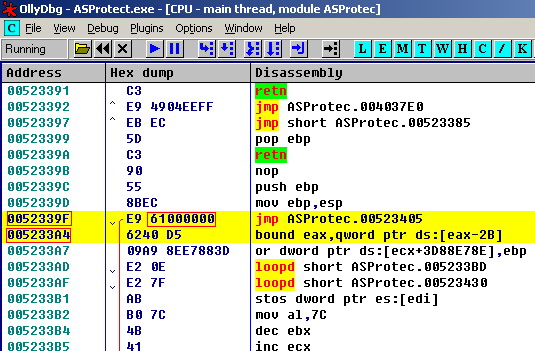

For example, 52339Fh is an encrypted part. We can easily yield 61h and 5233A4h from 52339Fh. Seeing From 5233A4h To 5233A4h + 61h the ASM code is jumbled. So searching "E9 ?? 00 00 00" in code section can help us to locate some encrypted part. Fortunately, one address is just enough, we can decrypt the whole table with only one address. What could I say that? Because RC4 subkeys are just XOR operation.


3.2 Brute Force Attack on EncryptionConst


Thus we have understood clearly the role of EncryptionConst. Let's form a conclusion: If Asprotect obtained a correct EncryptionConst, it will make 30002 times MD5 of it. Then the MD5 output will be used as RC4 init Key and decrypt a table to get encrypted section's information.
But if we don't have a valid registration key, that means we can't obtained correct EncryptionConst. We can also find that table and the decrypted information can be guessed. In this condition, we can write a simple brute force code like this

BOOL Check(BYTE key[4])
{
……
MD5Init(&ctx);
MD5Update(&ctx, key, 4);
MD5Final(md5key, &ctx);
for (i=0; i<30001; i++)
{
MD5Init(&ctx);
MD5Update(&ctx, md5key, 16);
MD5Final(md5key, &ctx);
}

rc4_initkey(md5key, 16, &rc4ctx);
rc4_crypt(data1, 12, &rc4ctx);
if (memcmp(data1, "….", 12) == 0)
{
return TRUE;
}
return FALSE;
}
void main()
{
for (DWORD start = 0; start < 0xFFFFFFFF; start++)
{
Check(&(LPBYTE)start);
}
}

It looks less efficient.



3.3 Another Example


Another target is Asprotect 1.35 Release 03.24. It seems protected by Asprotect SKE. Launch ollydbg with Asprotect 1.35 Release 03.24. SHIFT+F9 run.
Find the Asprotect dll ImageBase. Mine is 1020000h. Set breakpoint on RVA 1B320h of the dll ImageBase(same as above). Input name and any invalid registration key (it can be created from any Asprotect project). It will break on 103B320h.

Patch HardwareLocking Bytes

Patch return value

0103B3CD call 0103ABA8
0103B3D2 mov ebx,eax //' mov bl 1
0103B3D4 test bl,bl
0103B3D6 je 0103B4A4


Patch Mode ID = 2 at the end of 103B320h call

Then break on 010349C1h

010349BB mov ecx,eax
010349BD mov edx,esi
010349BF mov eax,ebx
010349C1 call 0102BE0C

Get the encrypted table from EAX

C5 12 4E 26 86 F5 91 4B 15 50 94 4C
78 1A 4E 26 2D FD 91 4B 17 50 94 4C
FD 35 4E 26 AE D2 91 4B 34 50 94 4C
FC 20 4E 26 B1 C7 91 4B BC 51 94 4C
35 78 4E 26 76 9F 91 4B 23 50 94 4C
FA 8D 4F 26 AF 6A 90 4B 11 50 94 4C

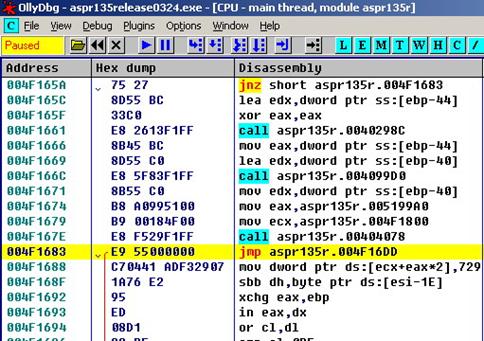

Searching for encrypted part with "E9 ?? 00 00 00" in code section.
I found one here



Guess and decrypt the table

73 7C 0F 00 78 7C 0F 00 63 00 00 00
CE 74 0F 00 D3 74 0F 00 61 00 00 00
4B 5B 0F 00 50 5B 0F 00 42 00 00 00

Write a program and start brute force attack!

I have no idea about the EncryptionConst of Asprotect 1.35 Release 03.24. So I am now attacking it. If any one can tell me the correct EncryptionConst or offer me a valid registration key, I will be very grateful to you. My PC is not so strong that it will take about 3 months to get the result 9. Had I got one hundred stronger computer, it would be finished in one day.


4 About Algorthm

Both MD5 algorthm and RC4 algorthm in Asprotect application is the standard. You can get them from google.
Here is the RC4 source code from Asprotect application.

typedef struct rc4_key
{
unsigned char state[256];
unsigned char x;
unsigned char y;
} rc4_key;

#define swap_byte(x,y) t = *(x); *(x) = *(y); *(y) = t

void init_key(unsigned char *key_data_ptr, int key_data_len, rc4_key *key)
{
int i;
unsigned char t;
unsigned char swapByte;
unsigned char index1;
unsigned char index2;
unsigned char* state;
unsigned char subkey[256];
short counter;

state = &key->state[0];
for(counter = 0; counter < 256; counter++)
{
state[counter] = counter;
subkey[counter] = key_data_ptr[counter% key_data_len];
}
key->x = 0;
key->y = 0;
index1 = 0;
index2 = 0;
for(counter = 0; counter < 256; counter++)
{
index2 = (subkey [index1] + state[counter] + index2) % 256;
swap_byte(&state[counter], &state[index2]);
index1 = (index1 + 1) % 256;
}
}

5 Conclusion

Alhough Asprotect SKE uses RSA public key, but the 32 bits EncryptionConst is so short that it can be force attacked. Most parts of registration key are not well used. With a valid registration key or the correct EncryptionConst, anyone can patch the application protected by Asprotect SKE and make his own keygen.


Note that this tutorial is only for research purpose.

6 Greetings
tEAr, heXer, fly, CoDe_Inject, Cnbragon, kanxue


shoooo314@hotmail.com
2006-4-19
